Lee Air > Products > Lightning ProtectionPurpose Built Aerospace Lightning Protection
Products

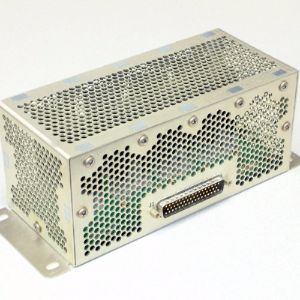

Aircraft Protection Module
Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Pressure Vessel
Function: Provides reliable 28VDC to aircraft loads under normal conditions and blocks lightning induced reverse current.
Features: Module is rated at 75ADC continuous and is cooled by natural convection. Contains 14 independent channels rated at 5ADC to 20ADC.

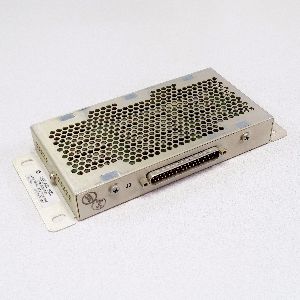

In-Series Protection Module, Resistor
Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Pressure Vessel
Function: Provides reliable 28VDC to aircraft loads under normal conditions and blocks lightning induced reverse current.
Features: Contains 12 independent channels rated at .10ADC to 3ADC.

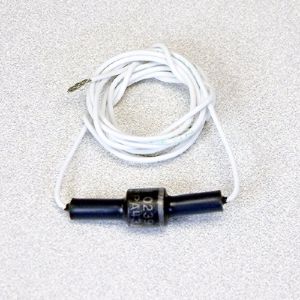

In-Series Component Protection
Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Various
Function: Provides additional lightning protection without re-design of the lightning susceptible LRU.
Features: Rated at 5KW to 300KW and designed to mount directly into the aircraft wire harness.
